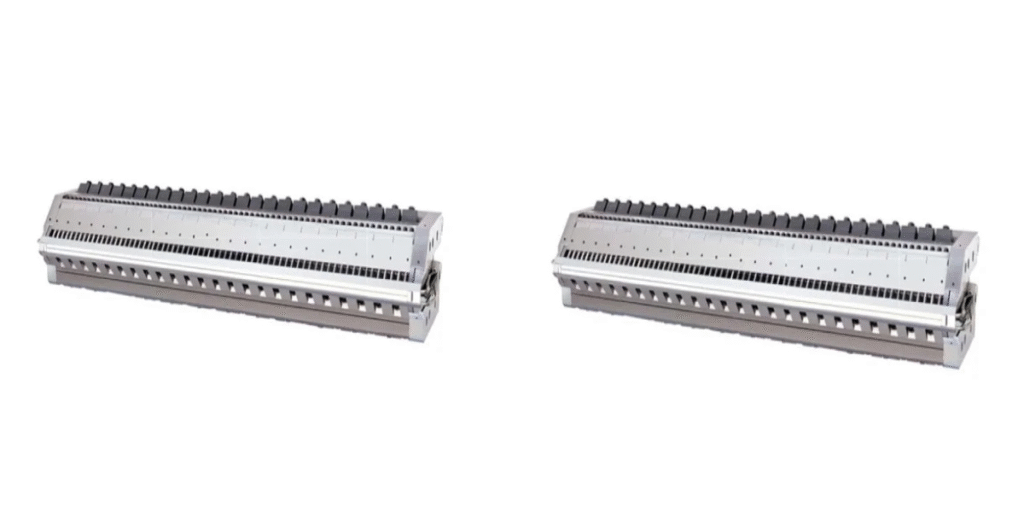

Dies And Mould For Extrusion Lines
Introduction
Welcome to Kriimpas India Pvt. Ltd., where we offer comprehensive solutions for all your material processing needs. Since 2012, we have been dedicated to providing top-notch machinery and services to our valued customers.
The effectiveness of an extrusion process in the production of plastics and polymers depends as much on the equipment’s quality as it does on the raw material. The dies and moulds, which are the precise tools that eventually shape molten plastic into pipes, sheets, films, profiles, or intricate bespoke shapes, are at the centre of this apparatus.
Selecting the appropriate dies and moulds is essential for businesses seeking dependability, consistency, and high precision. We at Kriimpas India Pvt. Ltd. are aware of how important moulds and dies are to any extrusion process. To provide the best performance, consistency, and quality for a range of applications, our extrusion lines combine top-of-the-line extruder machines with precise dies and moulds. We are the best Dies And Mould For Extrusion Lines Manufaturer.
What Are Extrusion Dies and Moulds
Extrusion creates a continuous profile by melting raw materials such as plastic pellets, powder, or other polymer blends and forcing them through a die. The cross-sectional shape of an extruded profile, such as a pipe, tube, window profile, sheet, or any unique design, is defined by a die. Additionally, a mould may be used in extrusion-based processes, particularly in hybrid extrusion-injection setups, or when the extruded product is being finished or shaped while it cools.
The shape, quality, and consistency of final products are therefore largely dependent on the die and mould set, which forms the core of an extrusion line. Inadequate tooling can result in waste, downtime, uneven dimensions, and defects. We are the best Dies And Mould For Extrusion Lines Supplier.
Why Choose Kriimpas India Pvt. Ltd
- Unmatched Technical Expertise and R&D Investment. Large providers like Kriimpas have the resources to invest deeply in research and development. With experience dating back to the company has cultivated a team of extrusion specialists who understand the nuances of different polymers, from standard PVC and Polyethene to challenging engineering plastics. This deep industry expertise ensures that you receive not just a product, but a solution tailored to your specific material and output requirements.
- Comprehensive, End-to-End Support A large-scale partnership means comprehensive support throughout the entire lifecycle of your tooling. Kriimpas exemplifies this by providing end-to-end assistance, from initial consultation and custom design to installation, maintenance, and timely supply of spare parts. This holistic approach minimises your operational risks and ensures that you have expert backing whenever you need it.
- Superior Quality and Rigorous Standards. With a robust infrastructure and a commitment to excellence, large manufacturers meticulously engineer their products using premium quality raw materials and advanced technology. Kriimpas, for instance, uses specialised nitriding steels and robust alloys to ensure their dies and moulds offer exceptional wear resistance, longevity, and perfect dimensional accuracy right out of the box. This built-to-last philosophy protects your major capital investment in the extrusion line itself.
- Vast Inventory and Reliable, On-Time Delivery. For a manufacturing business, downtime is the greatest enemy. Large providers maintain a massive inventory of standard consumable items and can leverage efficient production and supply chain processes to ensure reliable, on-time delivery. This means you get the part you need, when you need it, allowing you to plan your production and maintenance schedules with confidence and avoid costly interruptions.
- Customisation and Scalability for Future Growth: Your needs are unique and will evolve. A large provider has the technical capability and engineering bandwidth to design and manufacture highly custom change parts tailored to your specific machine and product requirements. Whether you need a complex profile die or a unique calibration system, they can create it. This scalability ensures that as your business grows and your product lines expand, your tooling partner can grow with you.
- Deep Industry Expertise and Technical Support Our team consists not just of engineers, but of extrusion specialists who understand the nuances of different polymers, from standard PVC and polyethene to challenging engineering plastics. This expertise allows us to provide comprehensive support that extends far beyond the initial sale. We offer expert advice on.
- Custom-Engineered Solutions We recognise that no two extrusion operations are identical, which is why we specialise in developing customised solutions tailored to your specific machine specifications, material characteristics, and product requirements. Our engineering team collaborates closely with clients to design and manufacture dies and moulds that optimise performance for particular applications—whether you require a complex multi-cavity profile die, a specialised food extrusion configuration, or a high-volume pipe production system. This client-centric approach ensures seamless integration with your existing equipment and processes while delivering exactly the output characteristics you need.
- Technical Expertise Across Multiple Industries Our team comprises extrusion specialists with deep knowledge of different polymers, from standard PVC and polyethene to challenging engineering plastics. This expertise extends across diverse sectors, including plastic piping, chemical processing, food production, and packaging. We understand the nuances of how various materials behave during extrusion and can provide expert guidance on tooling design, maintenance schedules, and operational parameters to optimise your entire process. This technical proficiency makes us more than just a supplier—we’re a strategic partner in your production success.
- Comprehensive Support and Reliable Service Our relationship with clients extends far beyond the initial sale. We provide dedicated after-sales support, including installation guidance, maintenance best practices, and troubleshooting assistance to ensure optimal performance throughout your tooling’s lifecycle. Our reliable supply chain and manufacturing processes ensure that you receive the right components exactly when needed, enabling effective production planning and maintenance scheduling without unexpected interruptions. This commitment to ongoing support provides peace of mind that your investment is protected long after installation.
Applications of Dies And Mould For Extrusion Lines
1. Plastic Pipes & Tubes
- PVC / HDPE water supply pipes, sewage pipes, drainage pipes — uniform wall thickness and precise diameter are critical for pressure and flow performance.
- Conduit tubes for electrical wiring or cable protection — requiring smooth internal/external surfaces for easy cable pulling.
2. Window/Door Profiles & Architectural Extrusions
- Profiles for doors, windows, frames — especially in uPVC or PVC — where surface finish, tight tolerances, and aesthetic quality are vital.
- Decorative profiles, skirting boards, piping covers, and conduits — extruded in plastic or composite materials.
3. Rubber Extrusions & Seals
- Sealing strips, gaskets, weather-strips for automotive, construction, doors/windows — rubber extrusion dies ensure consistent cross‑section for effective sealing.
- Flexible hoses, tubing for fluids, gases — where material flexibility and uniform wall thickness matter.
4. Cable & Wire Insulation Sheathing
- Extruded plastic/rubber coatings around copper wires or cable bundles requiring consistent diameter and thickness for electrical safety and insulation.
- Protective sleeves, conduit for fibre optic cables, and flexible wiring ducts used in electronics, appliances, and automobiles.
5. Industrial Profiles & Components
- Plastic or rubber profiles used in machinery, conveyor systems, packaging lines, protective guards, bumpers — custom shapes, often requiring precise dimensional accuracy.
- Sheets, rods, and strips are used in furniture, consumer goods, and infrastructure components.
6. Multi‑layer Co‑extrusion Products
- Pipes or profiles that need to combine different materials, e.g., rigid outer layer, flexible inner layer, require specialised co‑extrusion dies designed to handle multiple material flows simultaneously.
- Speciality tubing for chemical resistance, medical applications, and automotive use, where inner and outer layers serve different functions (e.g., strength + flexibility).
7. Rubber & Soft Plastic Products
- Flooring strips, mats, protective seals, bumpers and extruded rubber/plastic using dies designed for soft materials.
- Profiles are used in automotive interiors, window seals, weather stripping, and appliance gaskets.
Specification Table of Dies & Moulds for Extrusion Lines
| Item | Specification (Sample) |
|---|---|
| Material | Dies & Moulds for Extrusion Lines |
| Die Type | D2 / H13 tool steel (hardened & polished) |
| Nominal Pipe Ø | 20 mm — 630 mm (custom sizes available) |
| Max Line Speed | Up to 25 m/min (depending on material & wall thickness) |
| Temperature Control | Integrated heater bands + coolant channels |
| Surface Finish | Ra ≤ 0.4 µm (polished flow bore & lip) |
| Tolerance | ±0.1 mm (dependent on profile/size) |
| Coating Option | TiN / PVD / nitriding for wear resistance |
| Delivery Time | Typically 4–8 weeks (subject to customization) |
| Warranty & Support | 12 months + repair/reconditioning service |
Advantage of Dies & Moulds for Extrusion Lines
- Maximised Production Efficiency and Uptime. Durable, reliable components are key to minimising unplanned downtime. Our dies and moulds are built from wear-resistant materials that withstand constant high pressure and temperature, lasting longer and failing less often. Furthermore, having precisely machined change parts on hand allows for faster product changeovers, getting your line from one job to the next in record time.
- Exceptional Design Versatility Extrusion is an incredibly versatile process. With the right die design, manufacturers can produce a vast array of shapes and forms, from simple tubes to complex multi-layer profiles. Kriimpas leverages this versatility to serve a wide spectrum of industries, including.
- Long-Term Cost-Effectiveness While the focus is on quality, our dies and moulds deliver exceptional value over their lifespan. By reducing downtime, improving output rates, and extending the life of your major extrusion equipment, Kriimpas components ensure a significantly lower total cost of ownership, making your operation more profitable.
- Support for Sustainable Manufacturing. Modern extrusion processes are designed to be efficient with raw materials. By ensuring a smooth and consistent flow, our dies help reduce material waste. Furthermore, we design our dies to handle formulations with a higher percentage of recycled polymers, supporting our clients in their journey toward a circular economy and helping to reduce their environmental footprint.
- End-to-End Support Our partnership with clients extends far beyond the delivery of tooling. We provide comprehensive technical support, including installation guidance, operator training, maintenance planning, and troubleshooting assistance. This holistic approach ensures that our dies and moulds deliver maximum value throughout their operational lifespan.
- Sustainability-Driven Design As industries prioritise environmental responsibility, extrusion tooling adapts to process recycled materials and bio-based alternatives. Tooling design increasingly focuses on energy efficiency, material optimisation, and compatibility with sustainable feedstocks. The growing demand for biodegradable packaging highlights this trend, with starch extrusion playing an increasingly important role .
- Advanced Materials Compatibility The ongoing development of new polymer formulations and composite materials demands equally advanced tooling solutions . Extrusion dies must evolve to handle increasingly challenging materials while maintaining product quality and operational efficiency. Our R&D efforts focus squarely on these emerging material challenges.
- Comprehensive Expertise Across Industries Since our establishment in Kriimpas India has developed cross-industry expertise that uniquely positions us to solve diverse extrusion challenges . Our team understands the nuanced requirements of different sectors—from the stringent hygiene standards of food processing to the precision demands of aerospace components—and engineers tooling solutions accordingly.
Types of Dies for Extrusion Lines
1. Profile Dies Open Profile Dies
- Used to extrude complex cross-sections (window frames, gaskets, channels). Profile dies are designed to control flow path so material fills the profile evenly, avoiding warpage and ensuring uniform wall thickness.
2. Flat Sheet Board Dies
- Flat dies produce sheets, boards, and wide profiles. Important design aspects include manifold distribution and lip design to ensure an even melt front and uniform thickness across the width.
3. Slot Dies
- Used for coating and laminating as well as for producing very thin films or layers with precise thickness control. Slot dies are prized for uniformity in thickness and low variability.
4. Pipe and Tube Dies Annular Dies
- Designed to create circular cross-sections such as pipes, tubes, and hoses. They focus on concentric flow and often are paired with calibrators and vacuum tanks to maintain roundness and dimensional stability.
5. Multi-layer Co-extrusion Dies
- Used when producing layered structures (barrier films, composite pipes). These dies have multiple feed channels and a feedblock system to combine melts into a single, bonded multilayer product. Precision control of layer thickness and adhesion is critical.
6. Strand Dies
- Common in pelletizing and where multiple small profiles are extruded simultaneously (e.g., for cutting into pellets). Strand dies must ensure consistent strand spacing and flow to prevent variations.
Conclusion
Extrusion line dies and moulds are engineered parts that affect product quality, scrap rates, and production efficiency; they are not commodities. It is crucial to select the appropriate partner for design, material selection, and manufacturing. Kriimpas India Pvt. Ltd. provides the technical expertise, production accuracy, and customer-focused approach needed to produce dies and moulds that function dependably on contemporary extrusion lines. Investing in optimised tooling from a reliable provider like Kriimpas pays off in throughput, finish quality, and long-term operating cost reductions, regardless of whether you’re starting a new profile or increasing production. We are the best Dies And Mould For Extrusion Lines in Gujarat.
Extrusion success starts with the tool. Shape, tolerances, surface quality, and manufacturing stability are all determined by dies and moulds. Manufacturers may achieve greater yields, consistent quality, and reduced operating costs by choosing the appropriate design, material, and maintenance approach and working with a knowledgeable supplier like Kriimpas India Pvt. Ltd. Investing in high-quality tooling keeps your extrusion lines operating more efficiently, quickly, and financially.
